SteelCrete Access Floor: Margin of Safety
|
|
|
With none-combustible concrete-and-steel composite structure, Dowseng® SteelCrete Access Floor is
the strongest, most durable access floor system in the world.
“You leave yourself an enormous margin of safety. You build a bridge that 30,000-pound trucks can go across and then you
drive 10,000-pound trucks across it. That is the way I like to go across bridges.” -- Warren E. Buffett, Chairman of
Berkshire Hathaway.
Dowseng® SteelCrete Access Floors are widely used in Data Center,
General Office, Underfloor Air Distribution applications.
Dowseng® SteelCrete Access Floor is Zinc Whisker Free.
|
|
SteelCrete Access Floor Performance Chart
|
|
General Information
|
Static Loads
|
Rolling Loads
|
Impact
Loads |
|||||
SteelCrete Panel |
Understructure |
System Weight |
Concentrated Loads |
Ultimate Loads |
Uniform Loads |
10 Passes |
10,000 Passes |
|
SC800 |
Corner Lock |
8.6lbs/ft² 41kg/m² |
800lbs 363kg |
2400lbs 1089kg |
300lbs/ft² 14.35kPa |
600lbs 272kg |
400lbs 182kg |
150lbs 68kg |
SC1000 |
Corner Lock |
9.2lbs/ft² 44kg/m² |
1000lbs 454kg |
3000lbs 1363kg |
350lbs/ft² 16.75kPa |
800lbs 363kg |
600lbs 272kg |
150lbs 68kg |
SC1250 |
Corner Lock |
9.8lbs/ft² 47kg/m² |
1250lbs 567kg |
3750lbs 1701kg |
400lbs/ft² 19.1kPa |
1000lbs 454kg |
800lbs 363kg |
150lbs 68kg |
SC800 |
Bolted Stringer |
9.2lbs/ft² 44kg/m² |
800lbs 363kg |
2400lbs 1089kg |
300lbs/ft² 14.35kPa |
600lbs 272kg |
400lbs 182kg |
150lbs 68kg |
SC1000 |
Bolted Stringer |
9.8lbs/ft² 47kg/m² |
1000lbs 454kg |
3000lbs 1363kg |
350lbs/ft² 16.75kPa |
800lbs 363kg |
600lbs 272kg |
150lbs 68kg |
SC1250 |
Bolted Stringer |
10.4lbs/ft² 50kg/m² |
1250lbs 567kg |
3750lbs 1701kg |
400lbs/ft² 19.1kPa |
1000lbs 454kg |
800lbs 363kg |
150lbs 68kg |
|
HPL/Vinyl Finished SteelCrete Panel + Perforated Panel + Bolted Stringer System
Designed for Data Center applications.
Dimension: 600mm x 600mm or 24'' x 24''.
SteelCrete panel grades: SC800, SC1000, SC1250.
Perforated panel airflow rate 50%.
Perforated panel grades: PERF1000, PERF1250.
Wide range of HPL/Vinyl Finishes.
Finished floor heights: 150mm ~ 1200mm.
PVC taped rectangular stringer provides excellent loading and air-tightness performance.
|
|
Bare Finished SteelCrete Panel + Corner Lock System
Designed for General Office applications.
Dimension: 600mm x 600mm or 24'' x 24''.
SteelCrete panel grades: SC800, SC1000, SC1250.
Finished floor heights: 75mm ~ 1200mm.
|
|

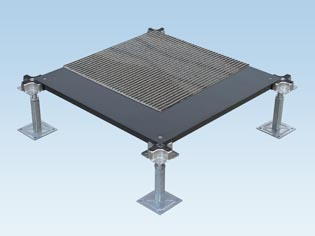

Bare Finished SteelCrete Panel + Bolted Stringer System
Designed for Underfloor Air Distribution applications.
Dimension: 600mm x 600mm or 24'' x 24''.
SteelCrete panel grades: SC800, SC1000, SC1250.
Finished floor heights: 150mm ~ 1200mm.
PVC taped rectangular stringer provides excellent loading and air-tightness performance.
Used with TROX® Floor Diffuser.
|
|
HPL And Vinyl Finishes
One of the advantages of a raised access floors is that it is fitted dry to overcome any difficulties on the building’s
floor slab. By offering a wide variety of Aesthetical And Functional Finishes, it is an
extremely versatile system which gives the designer great freedom of action.
|
